Using measurement of Hartmann theory; Printer of two dimension code; Integration printer,more convenient for replacing paper.
Features:
1)Using measurement of Hartmann theory,hundreds of measuring points makes the measurement easy and accurate.
2)Distribution measurement present you degree distribution of the lens.
3)Printer of two dimension code.
4)Integration printer,more convenient for replacing paper.
Technical Parameter:
| Range of spherical degree | -25m-1~+25m-1 | |||||
| Range of cylindrical degree | -9.99m-1~+9.99m-1 | |||||
| Range of under plus degree | -9.99m-1~+9.99m-1 | |||||
| Axis for astigmatism | 00~1800 | |||||
| Range of prism basal angle | 00~3600 | |||||
| Range of prism degree | Horizontal direction 15△,vertical direction 20△ | |||||
| Measurale lens size | Φ7~110mm | |||||
| Measurable lens thickness | ≤20mm | |||||
| Measurable lens leg thickness | 0~158mm | |||||
| Measurable UV transmissivity | yes | |||||
| Measurable range of PD | 30~100mm | |||||
| Measurable range of PH | 4~55mm | |||||
| Power | 220V 25VA | |||||
| Power adapter | AC110~220V | |||||
| Size | 203mmX240mmX480mm | |||||

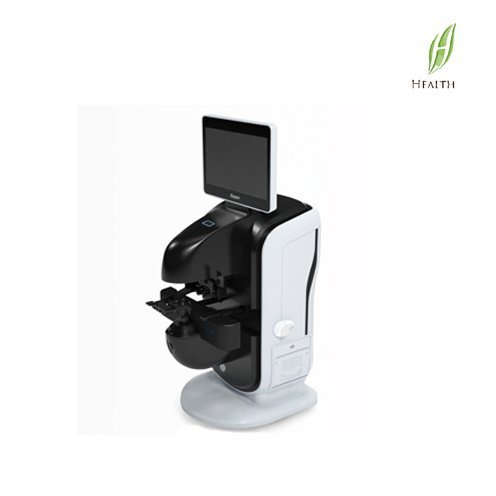

Product photos
Screen Photos
