02. Auto Lens Edger LE-420

Auto Optical Lens Edger Machine for Resin,CR,Glass Polycarbonate Lens Edger Beveling Polishing Function

SKU: LE-420 Categories: ,

LE-420-1LE-420

According to the different materials (like glass, resin or PC), sizes, types (like round lens, small lens or right-angle lens) or shapes (like-pointy edges, plat-band, Flat edge and bevel polishing),it can edger the lens that fit for the lens frame,or same as the pattern or demo lens through the running of the machine controlled by the main electrical optical boar.
Added the automatic emendation system in this new model. It can do automatic emendation when machine start up, assure the size of lens (left and right)is uniform and improve the precise.

feature

  • New design with PC function;
  • Added the automatic emendation system;
  • Four pieces of wheels(PC rough wheel, Glass rough wheel, ”V” wheel and Polishing wheel);
  • Automatic clamping system: three kinds of presses suitable for different kinds of lenses;
  • Add self-motion revise function;
  • Easy to use, simple to install;
  • Computer- controlled techniques ensuring the precision;
  • Using the advanced technology and being big-league in china



 1  2  3  4
 Follow-up pressure  Wheel Configuration  Bevel Polishing  Automatic Emendation Procedure
 It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the lens.  Standard configuration of four wheels( Resin coarse grading wheel/ Glass coarse grinding wheel, V-flat edge/ sharp edges fine grinding wheel, flat resin edge/sharp edges polished wheels) It is added with bevel polishing function and more accurate bevel grinding.  Automatic emendation of the lens size, initial zero proof reading during the start of grinding, obvious improvement of precision.

LE-420-3

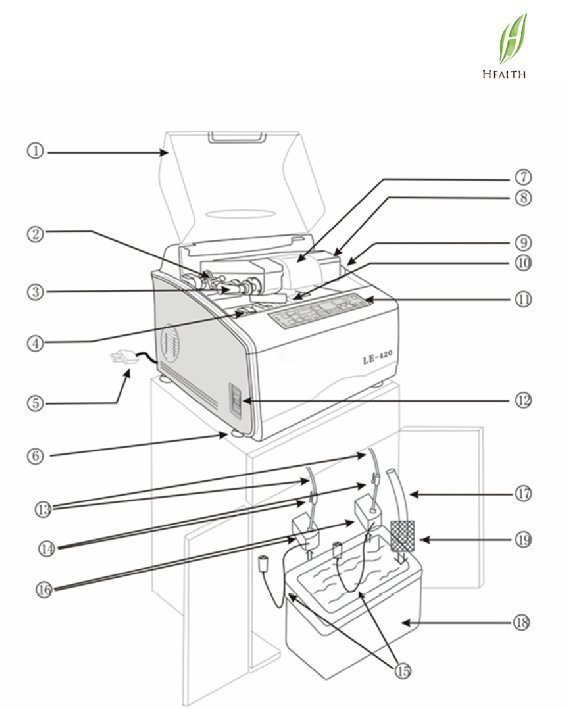

Direction of Diagram

  1. soundproof cover
  2. carriage weight-changing lever
  3. template retainer lever
  4. carriage back lashing sensor
  5. power cord
  6. adjustable cover
  7.  waterproof cover
  8. carriage
  9. lens clamp
  10. gear wheel
  11. operation panel
  12. on/off switch
  13. water supply pipe
  14. water supply cock
  15. pump power cord
  16. pump
  17. drain pipe
  18. tank
  19. filtrate skep

LE-420-4

Direction of Wheel:

  • a. Polishing wheel: used for polishing of flat style and beveled style for resin and PC lenses
  • b. Rough grinding wheel: used for roughly grinding glass lens
  • c. Fine grinding wheel: used for beveled style or flat style grinding
  • d. PC rough grinding wheel: used for roughly grinding PC or resin lens

LE-420-2 LE-420-5

Direction of Control Panel:

  1. PC, CR , GL lens selector
  2.  test switch
  3. chuck press selector
  4. frame selector
  5. beveling and framelss selector
  6. minus (-) switch
  7. plus (+) switch
  8.  re-edging switch
  9.  shift ( left ) switch
  10.  shift ( right) switch
  11. start switch
  12. stop switch
  13. lens-clamping switch
  14. lens-loosening switch

Specification:

  • Diameter of processed lenses: 22mm ~100mm
  • Range of adjustable measurement: -6.0mm~+6.0mm(0.05mm/step).
  • Dimension of figure: 530(L)×500(W)×400(H)mm.
  • Weight: 50KG.
  • Electric Voltage: 220V±10%/110V±10% 50HZ/60HZ.
  • Power: 500W.



AUTO LENS EDGER

  • a. Polishing wheel: used for polishing resin lenses
  • b. Rough grinding wheel: used for roughly grinding glass lens
  • c. Fine grinding wheel: used for bevelled style or flat style grinding
  • d. PC rough grinding Wheel: used for roughly grinding PC or resin lens
