04. Auto Lens Edger LE-320P

Auto Optical Lens Edger

SKU: LE-320P Categories: ,



LE-320



 1  2  3  4
 Follow-up pressure  Wheel Configuration  Bevel Polishing  Automatic Emendation Procedure
 It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the lens.  Standard configuration of four wheels( Resin coarse grading wheel/ Glass coarse grinding wheel, V-flat edge/ sharp edges fine grinding wheel, flat resin edge/sharp edges polished wheels) It is added with bevel polishing function and more accurate bevel grinding.  Automatic emendation of the lens size, initial zero proof reading during the start of grinding, obvious improvement of precision.

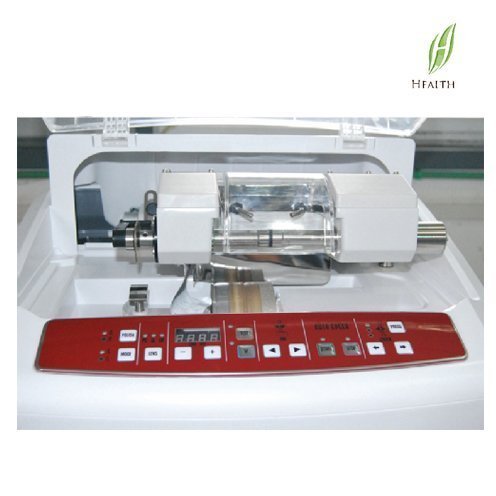

LE-320-1

LE-420-5

Direction of Control Panel:

  1. PC, CR , GL lens selector
  2.  test switch
  3. chuck press selector
  4. frame selector
  5. beveling and framelss selector
  6. minus (-) switch
  7. plus (+) switch
  8.  re-edging switch
  9.  shift ( left ) switch
  10.  shift ( right) switch
  11. start switch
  12. stop switch
  13. lens-clamping switch
  14. lens-loosening switch

Specification:



  • The size of Diamond wheel: CR Wheel: 100*15.6 mm, Glass Wheel: 100*14 mm

V Groove Wheel: 100*23 mm, Polishing wheel: 100*11 mm

  • Diameter of processed lenses: 22mm ~100mm.
  • The processing type:  pointy edges, platband, bevel polishing.
  • The lens material: CR, Glass, PC.
  • Range of adjustable measurement: -6.0mm~+6.0mm(0.05mm/step).
  • Dimension of figure: 510(L)×490(W)×400(H)mm.
  • Weight: 49KG.
  • Electric Voltage: 220V±10%/110V±10% 50HZ/60HZ.
  • Power: 500W.

AUTO LENS EDGER

  • a. Polishing wheel: used for polishing resin lenses
  • b. Rough grinding wheel: used for roughly grinding glass lens
  • c. Fine grinding wheel: used for bevelled style or flat style grinding
  • d. PC rough grinding Wheel: used for roughly grinding PC or resin lens
