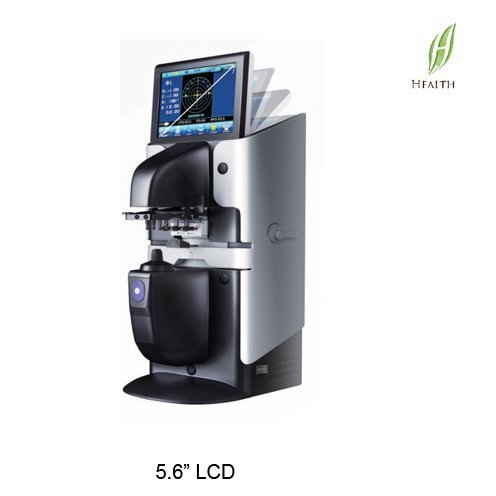

Adjustable LCD dispaly screen
Tilt color screen provides you with clear view from any position such as sitting and standing.

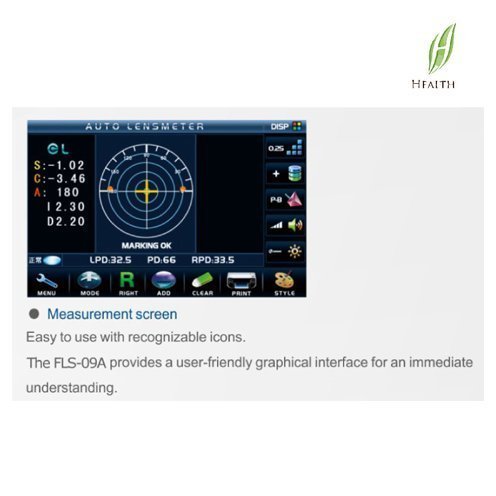

Sensitive touch LCD display screen
You just touch the screen to finish your measurement, the operation could be easier and more convenient.
This new generation auto lens meter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
Range of measurement
Sphere: 0~±25D 0.01/0.12/0.25D step
Cylinder: 0~±9.99D 0.01/0.12/0.25D step
Axis: 0°~180° (1° step)
Add: 0~+9.99D 0.01/0.12/0.25D step
Prism degree: 0~15△ 0.01/0.12/0.25D step
Measurement mode Cylinder:+,+/-，-
Prism: X-Y,P-B
Contact lens: soft/hard
Measuring mode single/ progressive/ automatic recognition
Specifications
Diameter of lens: ø20~108mm
PD: 40~90mm, 0.5mm step
Speed of emasurement: 0.1 s
Display: 5.6″ TFT LCD
Print: Thermal Printer
Dimensions: 222(D)*161(W)*372(H)mm
Package: 390(D)*320(W)*515(H)mm
Weight: ~5 KG
Power supply: 100~240V 50/60HZ
