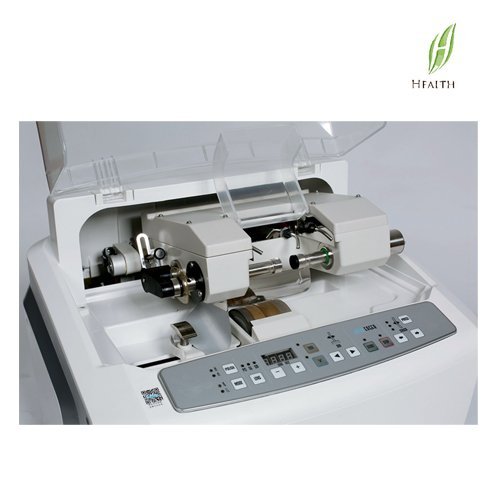

05. Auto Lens Edger LE-310P

Auto-Clip System	Wheel Configuration	Follow-up pressure	Automatic Emendation Procedure
Use of third gear pressure on the lens without damage	Standard configuration of four wheels( Resin coarse grading wheel/ Glass coarse grinding wheel, V-flat edge/ sharp edges fine grinding wheel, flat resin edge/sharp edges polished wheels)	It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the lens	Automatic emendation of the lens size, initial zero proof reading during the start of grinding, obvious improvement of precision.

Direction of Control Panel:

1. PC, CR , GL lens selector
2.  test switch
3. chuck press selector
4. frame selector
5. beveling and framelss selector
6. minus (-) switch
7. plus (+) switch
8.  re-edging switch
9.  shift ( left ) switch
10.  shift ( right) switch
11. start switch
12. stop switch
13. lens-clamping switch
14. lens-loosening switch


     Specification:

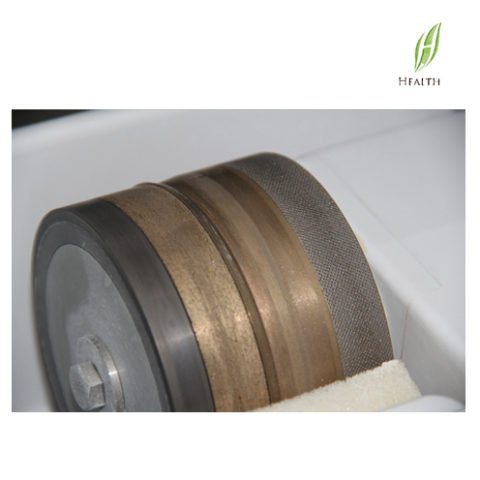

    • The size of Diamond wheel: CR Wheel: 100*15.6 mm, Glass Wheel: 100*16 mm

    V Groove Wheel: 100*23 mm, Polishing wheel: 100*11 mm

    • Diameter of processed lenses: 22mm ~100mm.
    • The processing type:  pointy edges, platband, bevel polishing.
    • The lens material: CR, Glass, PC.
    • Range of adjustable measurement: -6.0mm~+6.0mm(0.05mm/step).
    • Dimension of figure: 510(L)×490(W)×400(H)mm.
    • Weight: 51KG.
    • Electric Voltage: 220V±10%/110V±10% 50HZ/60HZ.
    • Power: 500W.



      • a. Polishing wheel: used for polishing resin lenses
      • b. Rough grinding wheel: used for roughly grinding glass lens
      • c. Fine grinding wheel: used for bevelled style or flat style grinding
      • d. PC rough grinding Wheel: used for roughly grinding PC or resin lens
