Main Features

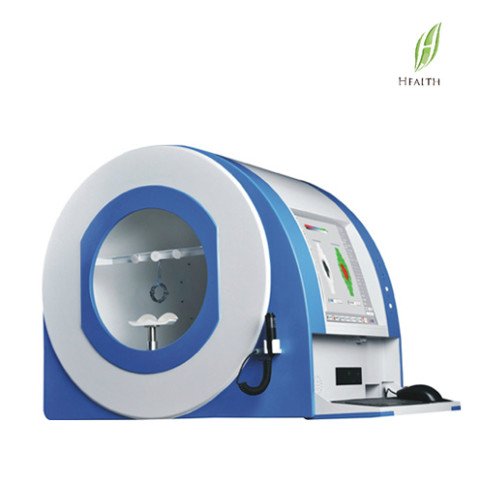

FFS-06 (all in one type with touch screen) fully automatic computerized perimeter integrates optics, mechanics and electronics, and absorbs the advantages of high-quality products in the word. It has provided scientific inspection method for the clinical glaucoma, fundus diseases, visual pathway injury and optical nerve disease with its advanced configuration, impeccable software system, advanced algorithm and analysis software.
Performance of Perimeter Scanner
- Radius of stimulator: 300mm
- Stimulating source of LED: Two visual lights: yellow and red.fixing spot is green.
- Stimulating intensity:0-1000asd and have 31 degree to adjust
- Rear projection,and the diameter of light spot is 2mm
- The number of stimulating and the stimulating time:
A.391 spots;
B: Stimulating retention time: 200ms-2000ms,continuously adjustable;
C: Stimulating spacing interval: 200ms-2000ms,continuously adjustable;
- Window of eye-position tracking: White-black CCD, directly tracking the testing eye
- 0°~90°scope can be tested in one time
- Voice prompt function available
- Background light intensity:31.5asd(controlled)
- The trip of chin rest: up-down: ≥50mm; right-left ≥28mm;
Examination Ways:
Threshold test; Fast threshold; Full threshold; Qualitative test
Test Range/ Scope:
|
Regular project |
C30 |
Central Field Test |
|
C46 |
ParaCentral Field Test |
|
|
P30-60 |
Peripheral Field Test |
|
|
Macular |
Macular Zone test |
|
|
Glaucoma |
Glaucoma test |
|
|
C60 |
0~60°test |
|
|
Specific project |
F0-90 | 0~90°user define test |
|
User |
self define test (quadrant available) |
|
|
Diabetes |
Diabetes test |
|
|
Neurology |
Neurology test |
|
|
Nasal step |
Nasal step test |
|
|
CLV |
Central Low Eyesight test |
|
|
Ptosis |
Ptosis test |
|
| Blindspot |
Blind spot zone test |
|
| Temporal |
Temporal side zone test |
