17 inch XGA Panel with LED backlit screen
New CNT test,which is more scientific,effective,and directive. NT curve will be formed and displayed om the screen when the test is finished.
Better user experience—-all tests icons are listed on home interface
Quick test list —Pick ten or less frequently used tests to establish your own quick test list.
V style optotype arrangement —Avoid optotpyes congested on the screen.
Excellent programming give full play to the features of CPU.
Vision Chart
Three languages:Chinese,English and Russian are available currently
Working distance: can be Flexibly adjusted according to user’s needs.
Various visus units for different operator’ preference .
Reversible optotypes and charts for mirrored room
Specifications:
| Type: | 17inch XGA Panel with LED backlit screen |
| Resolution: | 1280 * 1024 pixels |
| LCD brightness: | ≧200cd/㎡(min) |
| Charts | |
| Optotypes: | E,C,Alphabet,Numbers,Children, Allen pictures (Normal and Uncrowded type) |
| Mask type: | Change of the background, Single mask, Horizontal mask,Vertical mask,Red/green mask, Contrast sensitivity. |
| Special Chart | ETDRS |
| Contrast Sensitivity Test | |
| Contrast Test | |
| Ishihara test | |
| Cross cylinder | |
| Astigmatic Fan Dial | |
| Cross grid | |
| Fixation spot test | |
| Stero test | |
| Red green panel | |
| Worth Four-Dot test | |
| Red green balance | |
| Traffic Light | |
| Horizontal Coincidence test | |
| Vertical Coincidences test | |
| Schober test | |
| Low vision chart ( E, C, Alphabet, Numbers, Children ( Allen pictures)) Uncrowded Optotypes | |
| Other functions: | Video Playing, Image browsing, Randomization Optotypes Playing, Mirror function,Screen Save function, Standby function |
| Visus Unit | |
| Decimal: | 0.05~2.0 |
| Snellen(ft): | 20/400~20/10 |
| Snellen(m): | 6/120~6/3 |
| LogMAR: | -0.3~1.3 |
| 5-Grade: | 3.7~5.3 |
| Working distance: | 2m~3m(in steps of 0.1m ) 6ft-24ft(in steps of 0.5ft) |
| Low vision chart 0.6m~1.5m,in step of 0.1m | |
| Power Supply | |
| Input voltage: | AC 100~240v |
| Input frequency: | 50Hz/60Hz |
| Comsumption: | 20 Watt(max) |
| Remote Control: | IR Remote, 2*AA Batteries |
| Packaging | |
| Dimension: | 540 mm * 420 mm * 270 mm (L/W/H) |
| Net weight: | 3.6 Kg |

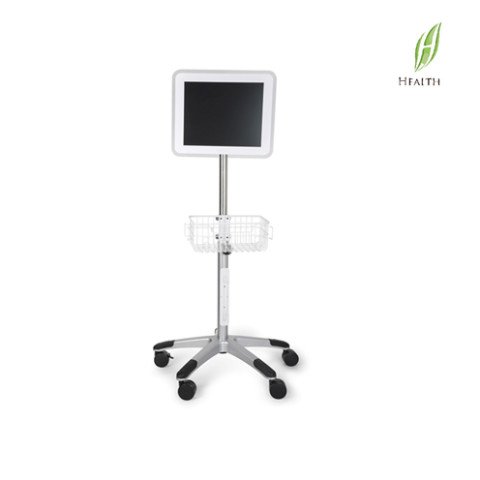

| Optional Accessories: | Desk support, floor stand |
