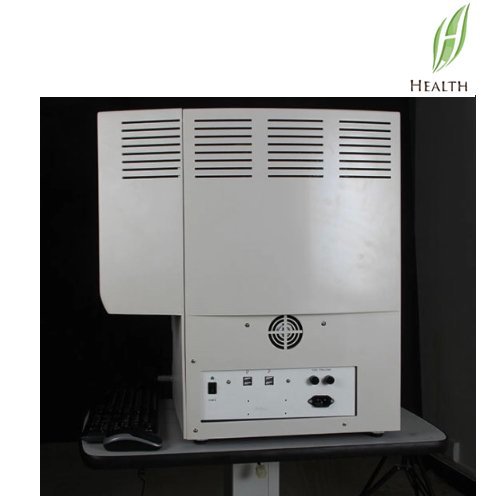

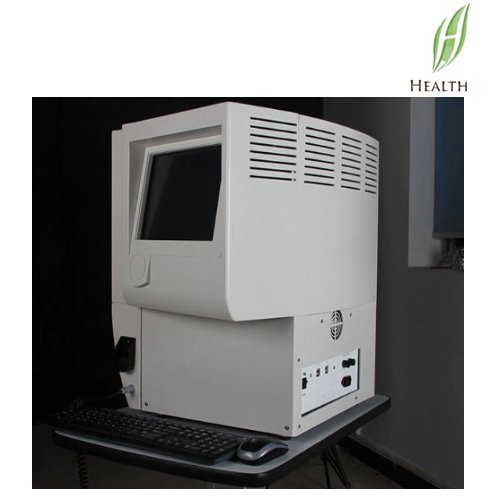

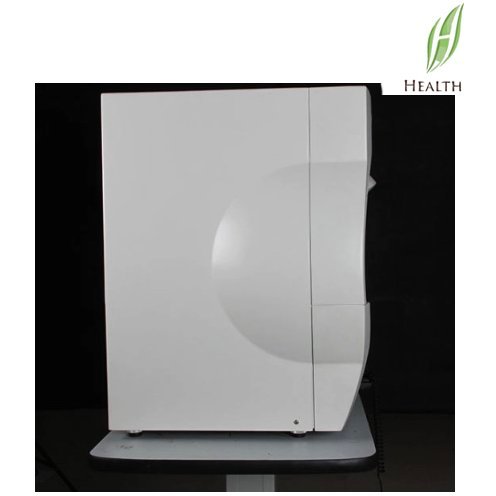

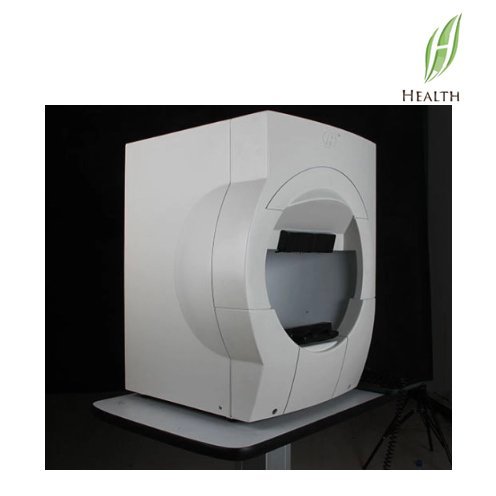

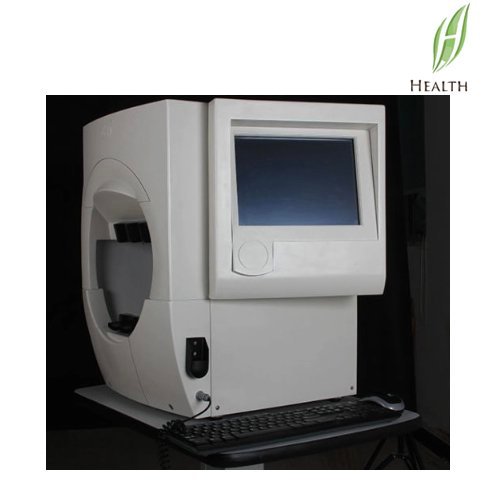

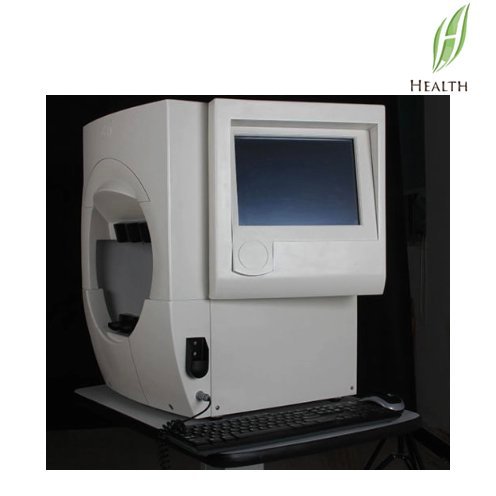

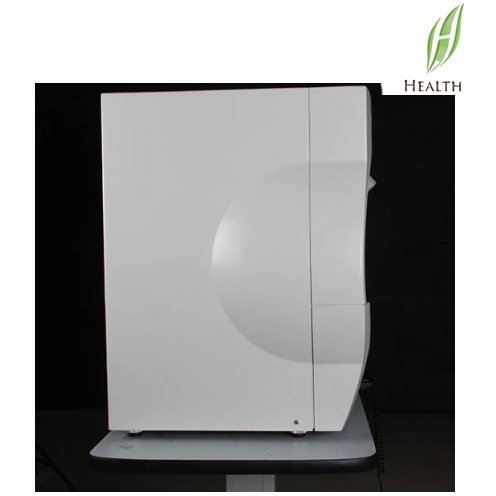

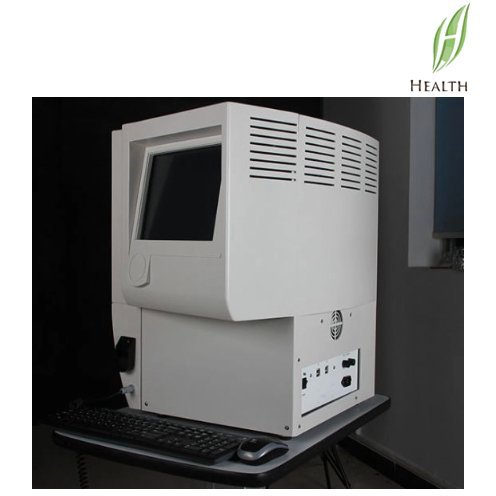

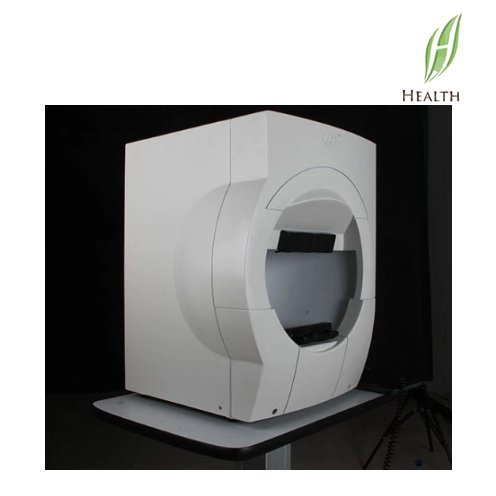

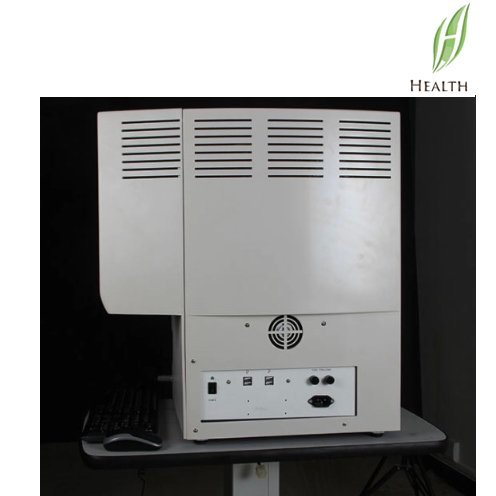

ophthalmic visual field analyser
Model: APS-T00
Feature
China’s first full-field projection perimeter
Software and hardware design is fully in line with international standards.
Automated,user-friendly design,easier operation
Automatic pupil measurement, monitoring nd correction of eye position
3 minutes to complete the threshold perimetry
Report analysis is consistent with the international mainstream
| Model | APS-TOO |
| Device Type | Integrated Type |
| Stimulate point appearing way | Optical projection |
| Detection method | Static perimetry |
| Detection range | 0-90 degree |
| Background light | Yellow , white |
| Background brightness | White:31.5asb Yellow:315asb |
| Visual Target color | Red,blue,white |
| Visual Target Brightness | Oasb-10000asb |
| Vision Target intervaltime | ≥200ms(customizable,no limit) |
| Visual target holding time | ≥200ms(customizable,no limit) |
| Brightness level | 0-51db |
| Visual Target Size(Goldman) | I Grade II Grade III Grade V Grade |
| Detection strategy | Full-threshold, fast threshold, custom, Two notation, three notation, quantify defects |
| Threshold Policy | Intelligent dynamic, fast intelligent dynamic, age-related, The threshold, a single strength |
| Threshold Test Mode | Center 10-2, Center 24-2, Center 30-2, Center 60-4, Nasal step, macula |
| Fixation monitoring | Dynamic real-time video monitoring, physiological blind spot monitoring, Eye tracking curve, eye position offset alarm |
| Analysis Software | Reliability analysis, analysis of a single vision, triple report analyzes |
| Report Figure | Value, grayscale, the overall bias decibel chart, The overall deviation probability map, chart pattern deviation decibels, Pattern deviation probability plot, staring Figure |
